Wire Rope Isolator Spring

Get a Price/Quote

MOQ : 100 Pieces

Wire Rope Isolator Spring Specification

Spring Material
Stainless Steel (AISI 304/316)

Finish
Natural / Galvanized / Passivated

Spring Type
Helical Wire Rope Spring

Hardness
Wire hardness 45-48 HRC (approx)

Product Type
Wire Rope Isolator Spring

Material
Stainless Steel

Function
Vibration Isolation, Shock Absorption

Usage
Industrial Machinery, Electronic Equipment, Transportation

Weight
300 g (Approx)

Size
Customizable or 120mm x 45mm x 40mm (As per requirement)

Color
Metallic Grey

Application
Protecting equipment from shock, vibration and noise damping

Feature
High flexibility, Maintenance-free, Wide temperature range, Long service life

Wire Rope Isolator Spring Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Wire Rope Isolator Spring

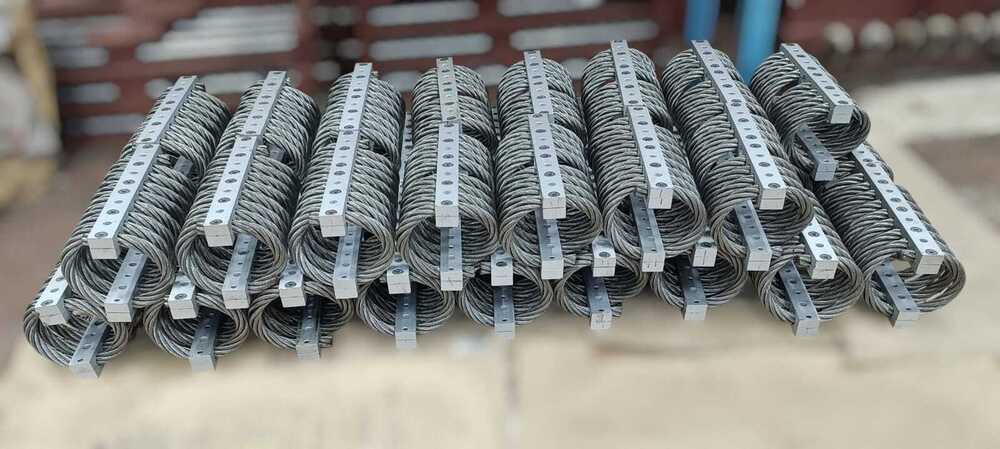

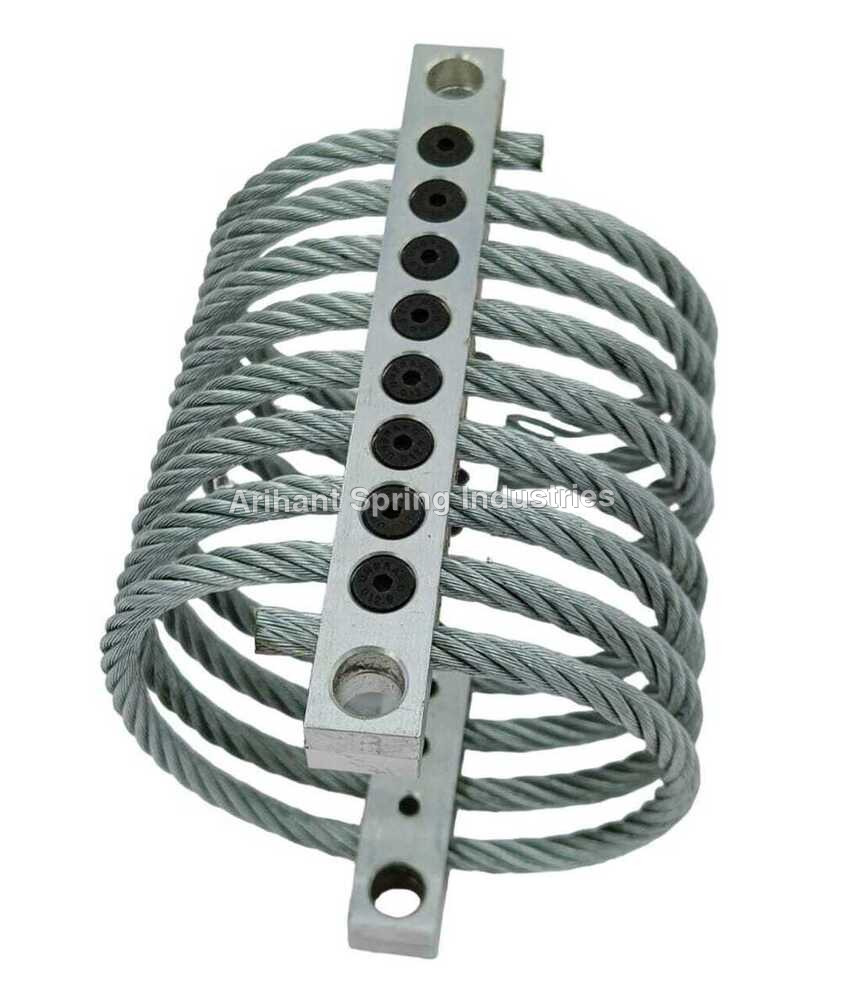

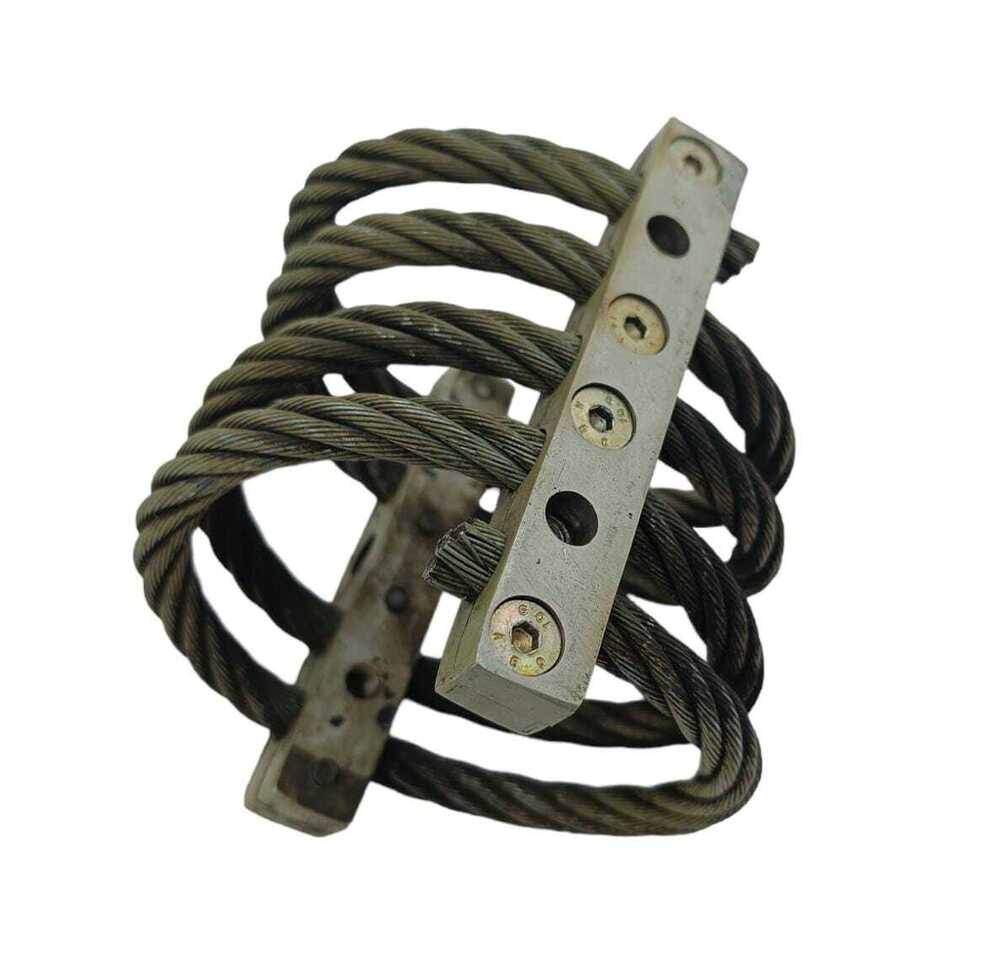

Our wire rope isolator springs are premier vibration isolation components engineered to deliver high-performance shock absorption across the most demanding industrial, electronic, and transportation sectors. By combining the inherent flexibility of a twisted rope construction with the resilience of spring elasticity, these isolators provide a dual-damping mechanism that standard mounts cannot match.

Designed for mission-critical reliability, these isolators endure extreme environmental conditions, maintaining full functionality in temperatures ranging from -100°C to +260°C. They are capable of supporting loads from 5 kg to 4,000 kg while operating at resonant frequencies as low as 1.5 Hz. This maintenance-free design offers exceptional lifecycle value upto one million cycle.

Versatile Mounting and Competitive Advantages

The primary advantage of the Wire Rope Isolator Spring is its ability to convert kinetic energy into thermal energy through internal friction between the rope strands. This allows for broad-frequency isolation that protects sensitive instrumentation and heavy machinery from both continuous vibration and sudden shock loads.

Key Technical Advantages:

● Multi-Axis Isolation: Provides effective damping in all directions (tension, compression, and shear), ensuring comprehensive equipment protection.

● Corrosion & Chemical Resistance: Engineered to withstand harsh chemical exposure and oxidative environments without performance degradation.

● Resonant Frequency Control: Low natural frequencies effectively decouple equipment from high-frequency structural vibrations.

● Flexible Mounting Geometry: Supports versatile installation methods, including base, flange, or inverted mounting, to adapt to any mechanical footprint.

Whether applied in aerospace electronics, stage rigging, or heavy industrial suspension systems, these isolators ensure operational safety and significantly reduce the risk of structural fatigue in surrounding components.

Reliable Supply, Certifications, and Sample Policy

As a globally recognized Manufacturer, Exporter, and Supplier, we provide a robust supply chain that bridges the gap between precision engineering and industrial scale. Our wire rope isolator springs are capable of performing under extreme shock and vibration profiles.

To support our global partners, we maintain a transparent procurement process:

● Technical Evaluation: Samples are available upon request to allow your engineering team to verify damping ratios and load capacities prior to full-scale integration.

● Strategic Logistics: Utilizing major FOB ports in India, we ensure swift dispatching to export markets across Europe, the Middle East, Asia, and Africa.

● Industrial Packaging: Every shipment is securely prepared in high-grade industrial packaging to ensure that the isolators arrive ready for immediate installation in high-stakes environments.

Introducing the latest Wire Rope Isolator Spring, engineered to deliver sublime vibration isolation and shock absorption for laureate-level performance in industrial machinery, electronics, and transportation. This imposing solution offers exceptional savings with its maintenance-free design, enduring harsh environments and temperatures between -100C and +260C. Accepting loads from 5 kg to 4000 kg, it operates at resonant frequencies as low as 1.5 Hz. With outstanding corrosion and shock resistance, high noise reduction, and compliance with global standards, this bargain is customizable to your precise needs while promising a lifecycle exceeding one million cycles.

Versatile Mounting and Competitive Advantages

The Wire Rope Isolator Spring offers flexible application methods, including base or flange mounting, adapting seamlessly to a variety of equipment setups. Its primary competitive advantages include superior corrosion resistance, a wide operational temperature range, and high flexibility. Used for protecting sensitive instruments, heavy industrial machinery, and electronics from vibration and impact, this laureate device ensures equipment longevity and reliable noise damping in the most demanding environments.

Reliable Supply, Certifications, and Sample Policy

We offer a robust supply ability for the Wire Rope Isolator Spring, with prompt fulfillment for domestic and export markets. Each product is backed by internationally recognized certifications such as MIL-STD-810 and EN ISO 12100, ensuring quality and safety. Our sample policy enables potential buyers to evaluate the product's performance before committing. Freight logistics are streamlined for swift deliveries, reinforcing our commitment to reliability and client satisfaction on every export shipment.

FAQ's of Wire Rope Isolator Spring:

Q: How does the Wire Rope Isolator Spring provide vibration isolation in various applications?

A: The Wire Rope Isolator Spring employs a helical wire rope design that flexibly absorbs and dissipates vibrations and shocks, significantly reducing mechanical noise and safeguarding sensitive equipment in industries such as electronics, machinery, and transportation.

Q: What are the available mounting options and how do they benefit installation?

A: With options for base or flange mounting, the isolator spring offers versatile installation methods, allowing it to be securely fitted to diverse surfaces and configurations, enhancing adaptability for different equipment requirements.

Q: When is it advisable to use this isolator spring in an industrial setup?

A: The isolator is ideal for use when machinery or equipment is exposed to high levels of shock, vibration, or noise-especially in environments subject to extreme temperatures or corrosive substances-offering protection and longevity for valuable apparatus.

Q: Where can the Wire Rope Isolator Spring be effectively applied?

A: This product is efficiently used in industrial plants, automated systems, electronic enclosures, vehicle suspensions, naval equipment, and or anywhere that demands robust vibration and shock mitigation.

Q: What is the process for customizing the Wire Rope Isolator Spring for specific needs?

A: Customization is available for size, wire diameter, mounting method, and even finish. Clients can specify their requirements, after which our engineering team will design and deliver the optimal isolator solution tailored to those precise specifications.

Q: What are the benefits of choosing a maintenance-free, stainless steel isolator spring?

A: A maintenance-free, AISI 304/316 stainless steel construction assures long service life, rust resistance, and consistent performance, even after over a million cycles-translating to lower operational costs and maximum equipment uptime.
